Feature:

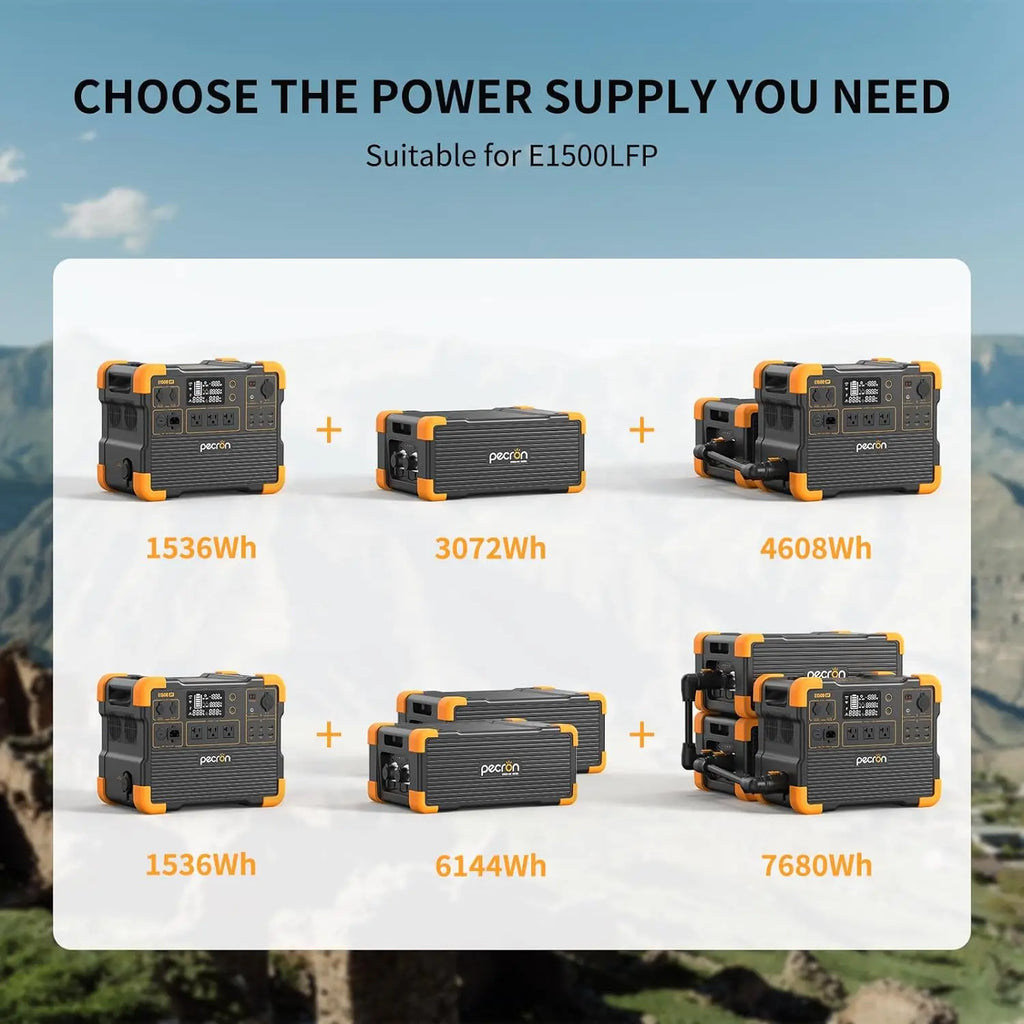

Extra 3072Wh Capacity: The overall capacity of E1500LFP can reach up to 7680Wh by connecting with 2*EP3000-48V modules.

Not Just for Expansion: The 100W USB-C, 12V/30A DC Output and 18W USB-A output ports are to charge your on-road essentials like phones, laptops, mini-fridges, and lights.

Safety & Durable: The ultra-safe LiFePO4 battery with Built-in BMS assures the self-protection of short circuits, overloads, and overheating.

Independent Charging Capabilities:pecron EP3000-48V can be charged independently from the solar panels, AC, and Car. (Connect with E1500LFP for faster charging speed).

What You Get: pecron EP3000-48V expansion battery, Battery expansion cable, Solar charging cable, DC output cable, Car charging cable,12V Alligator Clips, User Manual, 12-month warranty, and friendly customer service.

Specification:

Model: EP3000-48V

Capacity: 3072Wh (51.2V/60Ah)

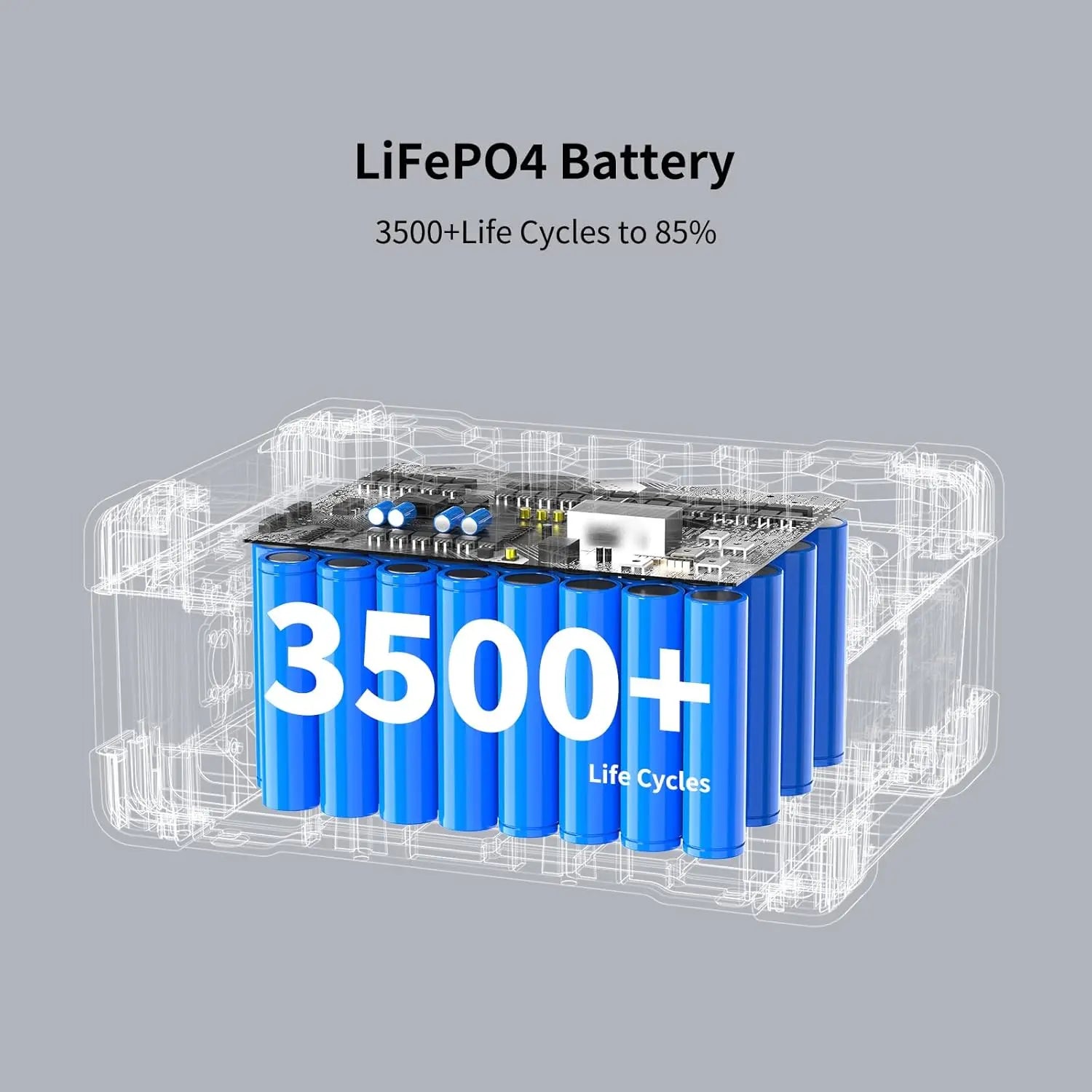

Battery Type: LiFePo4(3500+ cycles to 80%)

Input: AC Adapter charging /Solar charging / Car charging

AC Adapter Input: 100Vac~120Vac .Output：42V⎓15A

Solar Input: Voc 12V~95V / 400W Max / 15A Max

Car Input: DC 12V~95V-400W（Max）

DC Output: 1x12V XT60 (30A Max) ; 1xUSB-C ; 1xUSB-A

USB Output: 1 x 100W PD, 1 x 18W

Weight: 57.lbs(26KG)

Dimension: L441*W312*H200mm；L17.3xW12.2xH7.8in

Charge Temperature: 0°C~45°C / 32°F-113°F

Discharge Temperature: -20°C~45°C / -4°F-113°F

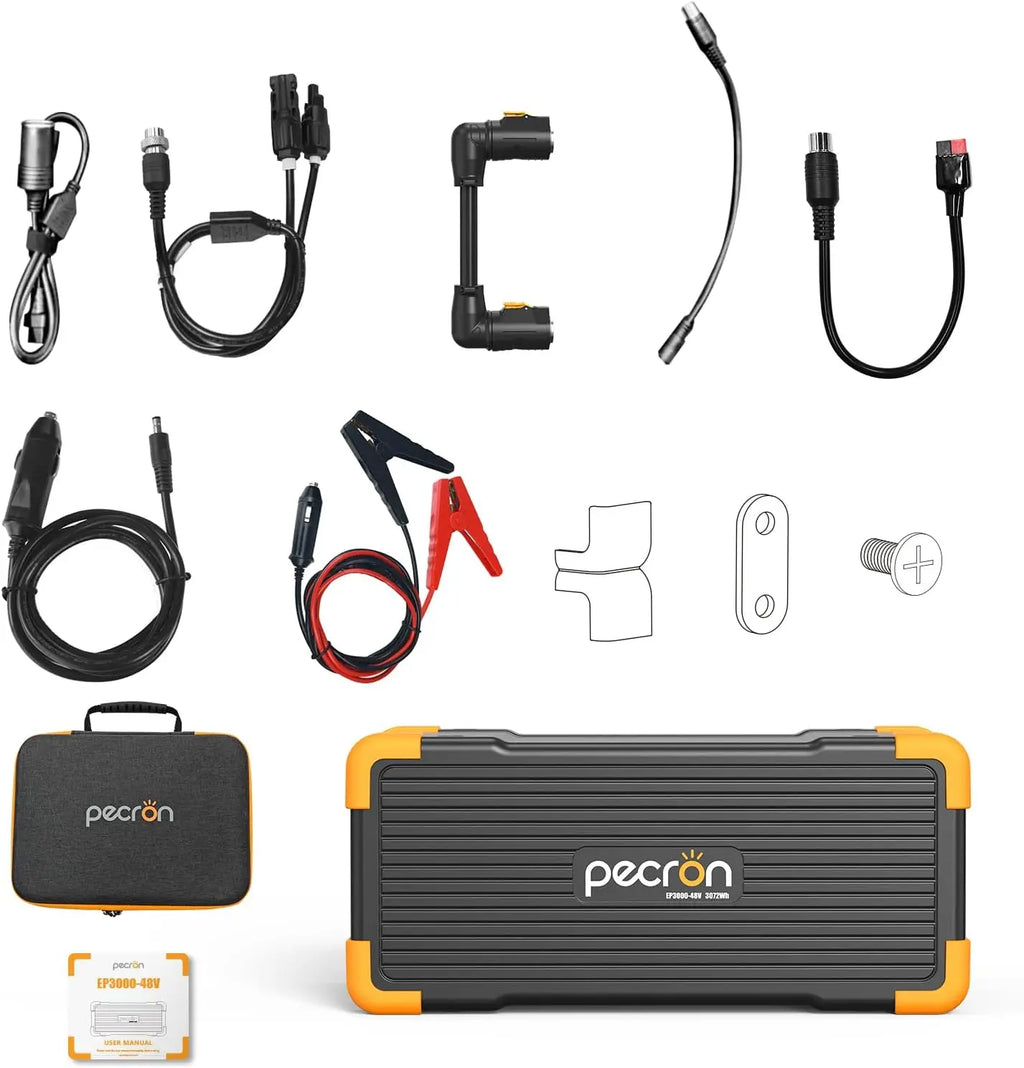

Packing List:

1*PECRON EP3000-48V

1*Cable from XT60 to Cigar port and 5525 port

1* Solar Charging Cable

1*MJ35 Cascade cable

1*Solar Cable with 5521 Connector

1*Anderson Solar Charging Cable

1*Car charge cable with GX16MF-5 connector

1*12V Alligator Clips

6*Corner protectors

6*Metal connecting pieces

6*Screws

FAQS

Q1:What kind of battery is used in EP3000-48V?

A:EP3000-48V utilizes high quality UL certified automotive LiFePO4 battery.

Q2:What machines can the EP3000-48V power pack be cascaded to?

A:Currently EP3000-48V power pack can be cascaded to machines with MJ32 cascade port.

Q3:After the EP3000-48V power packs are cascaded, can the EP3000-48V power packs be used to charge or discharge?

A:Yes, but the charging and discharging power cannot be displayed on the host separately, the current and voltage of each battery pack can be viewed through the APP.

Q4:How to calculate the EP3000-48V running time?

A:Running Time=Total Capacity(3072Wh) * 0.85 (Depth of Discharge)/Loading Power(Watts)

Q5:Does EP3000-48V have built-in MPPT controller?

A:Yes, EP3000-48V has a built-in MPPT charge controller, which supports 12V-95V(max 400W).

Q6:How many EP3000-48V power packs can be cascaded to the host at most?

A:Each MJ32 port can be cascaded up to two. If the quantity is more than two, the resistance between the host and the power pack will increase, and the voltage difference will also increase, causing the cascaded battery to fail to function properly.

Q7:How to store the EP3000-48V?

A:When storing, please first turn off the product and then store it in a dry, ventilated place with room temperature environment. Do not place this product near water sources. When storing for a long time, it's recommended to discharge the battery to 30% and then recharge it to 60% every three months to extend the life of this product.

Q8:Other issues to be noted.

A:Pay attention to the ponit that the product is without waterproof function and prevent water getting into it. Pay attention to ventilation and heat dissipation when using, and keep good ventilation at the air inlet and outlet of the product. Do not use the product in special occasions (under the mine, gas station, etc.)
